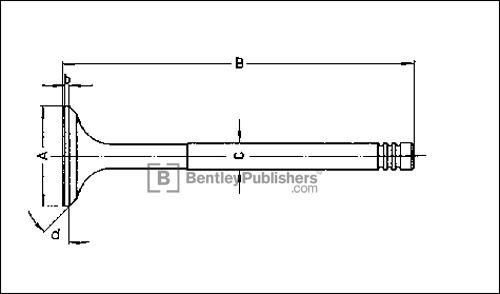

Fig. 10-9. Dimensions for new valves.
Engine
page 24
Dimension A,
valve head diameter
Intake: 35.60 mm (1.400 in.)
Exhaust: 32.10 mm (1.260 in.)
Fuel Injection engine
Exhaust: 30.10 mm (1.185 in.)
Dimension B,
valve length
112.00 mm (4.409 in.)
Dimension C,
valve stem diameter
Intake: 7.94-7.95 mm (.3216-.3130 in.)
Exhaust: 7.91-7.92 mm (.3114-.3118 in.)
Fuel Injection engine
Exhaust: 8.91-8.92 mm (.3508-.3512 in.)
Dimension b,
valve head margin
Intake: 0.80-1.50 mm (.031-.059 in.)
Exhaust: 1.00-1.70 mm (.040-.067 in.)
Dimension d,
valve facing angle
Intake: 44
Exhaust: 45
