Volkswagen Jetta (A5)
Service Manual:
2005, 2006, 2007,
2008, 2009, 2010

1.9L and 2.0L diesel, 2.0L and 2.5L gasoline
including TDI, GLI and SportWagen

by Bentley Publishers

Hardcover, 8 3/8 in. x 11 in.
1352 pages
2484 technical photos and illustrations
Includes 991 electrical wiring diagrams
ISBN-13: 978-0-8376-1616-2
Price: $129.95

Volkswagen Jetta (A5): 2005-2010 Repair Manual

The Volkswagen Jetta (A5) Service Manual: 2005-2010 is a definitive reference source of technical automotive repair and maintenance information for Volkswagen Jetta models built on the "A5" platform.

Click here to view an excerpt from this manual:
24-16 Fuel Injection-Gasoline
Fuel Injection Components (2.5L)

Service to Volkswagen owners is of top priority to Volkswagen and has always included the continuing development and introduction of new and expanded services. Whether youre a professional or a do-it-yourself Volkswagen owner, this manual will help you understand, care for and repair your Volkswagen. The do-it-yourself Volkswagen owner will find this manual indispensable as a source of detailed maintenance and repair information. Even if you have no intention of working on your vehicle, you will find that reading and owning this manual makes it possible to discuss repairs more intelligently with a professional technician.

Engines:

  • 1.9L TDI PD diesel (engine code: BRM)
  • 2.0L TDI common rail (engine code: CBEA, CJAA)
  • 2.0L FSI turbo gasoline (engine code: BPY)
  • 2.0L TSI turbo gasoline (engine code: CBFA, CCTA)
  • 2.5L gasoline (engine code: BGP, BGQ, CBTA, CBUA)

Transmissions

  • 0A4 5-speed manual
  • 02Q 6-speed manual
  • 09G 6-speed automatic
  • 02E 6-speed DSG

Technical features:

  • Covers Jetta models 2005-2010 based on the A5 platform.
  • Maintenance procedures from oil changes to belt replacement.
  • Engine and cylinder head service, including timing belt replacement.
  • Removal and installation of Motronic (gasoline) and diesel fuel injection system components, including Pumpe DŁse (PD) and common rail diesel.
  • Emission control tests, repairs and adjustments, including exhaust gas recirculation and secondary air injection system.
  • Drivetrain maintenance, troubleshooting, adjustment and repair, including clutch, gearshift linkage, and drive axles.
  • Suspension component replacement including front struts, rear shocks, coil springs, wheel bearings and wheels.
  • Heating and air-conditioning repair, including A/C component replacement for Climatronic and Climatic systems.
  • Body adjustment and repairs including front and rear doors, fenders, front radiator support and sunroof.
  • Wiring schematics with fuse/relay locations including an easy-to- use illustrated component locator section.
  • Volkswagen OBD II diagnostic trouble codes, SAE-defined OBD II P-codes, as well as basic scan tool operation.
  • Comprehensive Volkswagen factory tolerances, wear limits, adjustments, and tightening torques.

Additional technical content

For additional technical content for A5 platform Volkswagen models including the 2005 through 2010 Jetta, visit our online technical library by clicking below.

Online Technical Library
Jetta 2005-2010, Jetta SportWagen 2008-2010, Rabbit, GTI 2006-2009, R32 2008 (A5)

click to enlarge, and for longer caption if available
Durable hardcover format
click to enlarge, and for longer caption if available

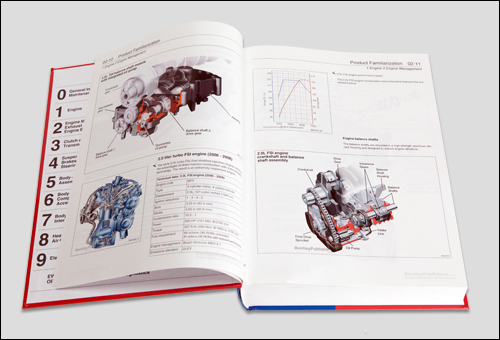

Sample page spread of this Jetta repair manual, click on the photo to see more views
click to enlarge, and for longer caption if available
Bentley technical editors working on a 2005 Jetta.
click to enlarge, and for longer caption if available

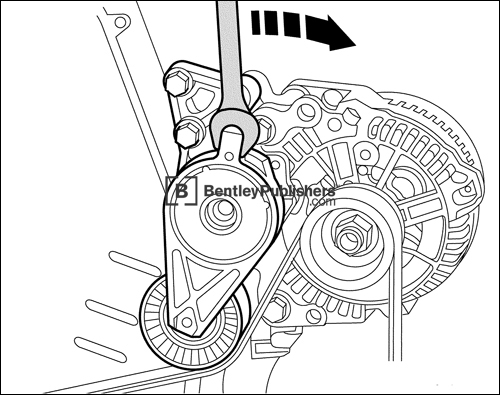

03 Maintenance
Tensioner being rotated to remove ribbed belt.
click to enlarge, and for longer caption if available

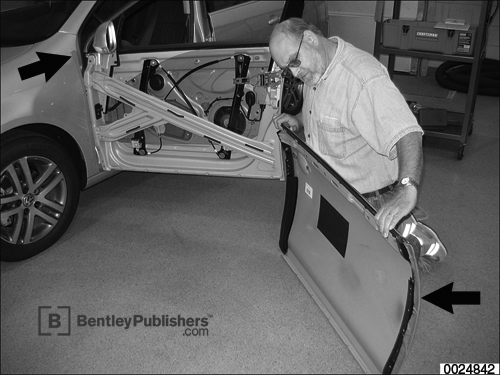

57 Doors and Central Locking
Outer door panels are removable for servicing components inside door cavity.
click to enlarge, and for longer caption if available

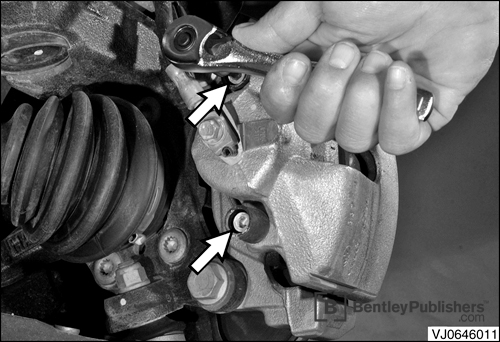

46 Brakes-Mechanical
Detailed brake pad and rotor service procedure.
VW Jetta A5 Service Manual 2005-10
VW Jetta A5 Service Manual 2005-10
Wholesale Case Quantity: 5
BSIN: VJ10
ISBN: 0-8376-1616-6 (ISBN-10)
ISBN: 978-0-8376-1616-2 (ISBN-13)
Permalink: http://www.bentleypublishers.com/c/VJ10
Associated Vehicles

This product is related to the following vehicles:
