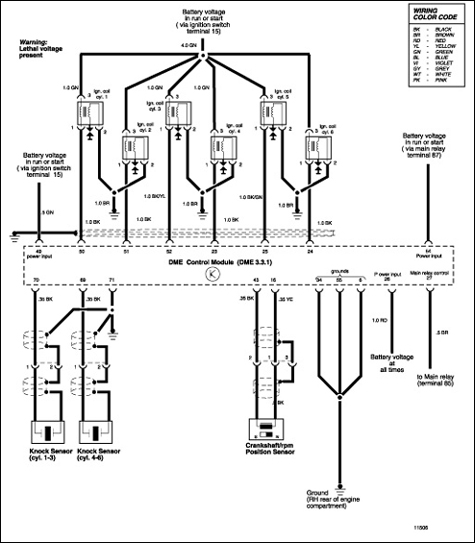

Engine Management wiring diagrams.
120 Ignition Sysem-DME
page 120-9
Engine Management wiring diagrams.

120 Ignition Sysem-DME
page 120-9
